Socomec

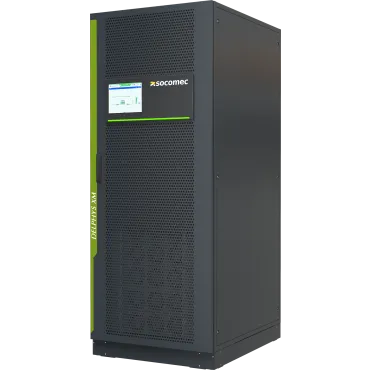

DELPHYS XM UPS 300kVA - 800kVA
Modular Three-Phase UPS for High Power Density
Socomec DELPHYS XM Modular UPS for High Power Density and Mission-Critical Facilities
Socomec DELPHYS XM adalah UPS modular three-phase online double conversion dengan power density tinggi, efisiensi superior, dan arsitektur scalable untuk fasilitas mission-critical. Dengan modul 100kW hot-swappable, efisiensi hingga 97.1% pada VFI mode, hingga 99% pada Smart Conversion, dan footprint hanya 0.8m² untuk 800kW, DELPHYS XM ideal untuk enterprise data center, colocation, telecom hub, dan fasilitas industri yang membutuhkan skalabilitas serta keandalan daya maksimal.
6 Models
300 - 800 kVA
99%
Smart Conversion Efficiency
1 Tahun
Garansi Standar Pabrik
Key Features of DELPHYS XM
Fitur utama untuk data center, colocation, dan fasilitas mission-critical yang membutuhkan UPS modular dengan density tinggi.
Superior Efficiency
Efisiensi hingga 97.1% pada VFI mode dan hingga 99% pada Smart Conversion untuk menekan energy loss dan TCO.
Highest Power Density
Mendukung kapasitas hingga 800kW dalam footprint sekitar 0.8m² untuk optimasi ruang pada fasilitas berdaya tinggi.
Hot-Swappable Modules
Modul 100kW hot-swappable dengan full front access membantu mempercepat service dan mengurangi risiko downtime.
N+1 Redundancy
Arsitektur modular mendukung konfigurasi redundancy untuk menjaga continuity saat terjadi gangguan pada salah satu module.
Li-ion Compatible
Kompatibel dengan Lead-acid, NiCd, dan Lithium-ion battery untuk fleksibilitas runtime, footprint, dan lifecycle cost.
10-Inch Touch HMI
User interface 10-inch color touchscreen multilingual untuk monitoring status, alarm, dan operasi UPS secara lebih mudah.
Digital Services Ready
Mendukung remote monitoring, diagnostics, dan proactive maintenance melalui layanan digital Socomec seperti SoLink, SoLive, dan SoData.
Energy Saver Mode
Mode efisiensi untuk kondisi low-load membantu menjaga konsumsi energi tetap optimal tanpa mengabaikan kebutuhan availability.
Complete Technical Specifications
Gunakan tab di bawah untuk melihat spesifikasi teknis Socomec DELPHYS XM berdasarkan range kapasitas.
| Parameter Teknis | 300kVA | 400kVA |
|---|---|---|
| Kapasitas Daya | 300kVA / 300kW | 400kVA / 400kW |
| Module Configuration | 3 x 100kW | 4 x 100kW |
| Topology | Online Double Conversion (VFI), Transformer-Free | |
| Input / Output | 3/3 (Three-Phase) | |
| Input Voltage | 400VAC 3-Phase + N (380/415VAC configurable) | |
| Efficiency (VFI) | Up to 97.1% | |
| Efficiency (Smart Conversion) | Up to 99% | |
| Transfer Time | 0ms from Smart Conversion to VFI | |
| Output Power Factor | Unity (1.0) | |
| Battery Type | VRLA, NiCd, Lithium-ion | |
| Footprint | 0.8 m² | |
| Dimensions (W x D x H) | 800 x 1000 x 2000 mm | |
| Protection Level | IP20 (higher IP optional) | |
| Parameter Teknis | 500kVA | 600kVA |
|---|---|---|
| Kapasitas Daya | 500kVA / 500kW | 600kVA / 600kW |
| Module Configuration | 5 x 100kW | 6 x 100kW |
| Topology | Online Double Conversion (VFI), Transformer-Free | |
| Input / Output | 3/3 (Three-Phase) | |
| Input Voltage | 400VAC 3-Phase + N (380/415VAC configurable) | |
| Efficiency (VFI) | Up to 97.1% | |
| Efficiency (Smart Conversion) | Up to 99% | |
| Transfer Time | 0ms from Smart Conversion to VFI | |
| Output Power Factor | Unity (1.0) | |
| Battery Type | VRLA, NiCd, Lithium-ion | |
| Footprint | 0.8 m² | |
| Dimensions (W x D x H) | 800 x 1000 x 2000 mm | |
| Conformal Coating | Available for harsh environments | |
| Parameter Teknis | 700kVA | 800kVA |
|---|---|---|
| Kapasitas Daya | 700kVA / 700kW | 800kVA / 800kW |
| Module Configuration | 7 x 100kW | 8 x 100kW |
| Topology | Online Double Conversion (VFI), Transformer-Free | |
| Input / Output | 3/3 (Three-Phase) | |
| Input Voltage | 400VAC 3-Phase + N (380/415VAC configurable) | |
| Efficiency (VFI) | Up to 97.1% | |
| Efficiency (Smart Conversion) | Up to 99% | |
| Transfer Time | 0ms from Smart Conversion to VFI | |
| Output Power Factor | Unity (1.0) | |
| Battery Type | VRLA, NiCd, Lithium-ion | |
| Footprint | 0.8 m² | |
| Dimensions (W x D x H) | 800 x 1000 x 2000 mm | |
| CO2 Saving | More than 30 tons/year compared to lower efficiency UPS | |
Ideal Implementation Sectors
Solusi modular UPS untuk fasilitas berkapasitas besar yang membutuhkan power density, redundancy, dan efisiensi tinggi.
Ideal untuk large-scale data center, colocation, hyperscale facility, dan edge hub yang membutuhkan footprint efisien.
Mendukung rumah sakit besar, medical imaging center, laboratorium, dan fasilitas kesehatan dengan kebutuhan power continuity tinggi.
Cocok untuk core network, switching center, telecom hub, dan network operation center dengan SLA tinggi.
Dapat diterapkan pada continuous process manufacturing, petrochemical, dan industrial automation berskala besar.
Why Choose NPS?
NPS membantu memastikan konfigurasi DELPHYS XM sesuai kebutuhan load, redundancy, battery, monitoring, dan service access proyek Anda.
Authorized Partner
Sebagai Socomec Solution Partner resmi di Indonesia, NPS mendukung keaslian produk, konfigurasi teknis, dan koordinasi warranty sesuai ketentuan pabrikan.
Project-Based Sizing
Kami membantu review kapasitas, load profile, redundancy target, footprint, battery autonomy, dan rencana ekspansi sebelum finalisasi konfigurasi.
Expert Installation
Tim teknis NPS mendukung instalasi, termination, testing, commissioning, documentation, dan handover sesuai standar proyek critical power.
Monitoring Integration
Dukungan integrasi monitoring, SNMP/BMS, alarm mapping, dan koordinasi interface agar UPS dapat dipantau oleh operation team.
Battery Lifecycle Support
NPS mendukung perencanaan battery bank, penggantian battery, disposal coordination, dan rekomendasi lifecycle berdasarkan kondisi operasional.
Flexible Service Contract
Pilihan service contract dapat disesuaikan dari basic preventive maintenance hingga coverage yang lebih komprehensif untuk fasilitas kritis.
Ready to Specify DELPHYS XM for Your Critical Facility?
Hubungi NPS untuk konsultasi teknis, load review, battery configuration, monitoring integration, dan penawaran Socomec DELPHYS XM sesuai kebutuhan proyek Anda.
