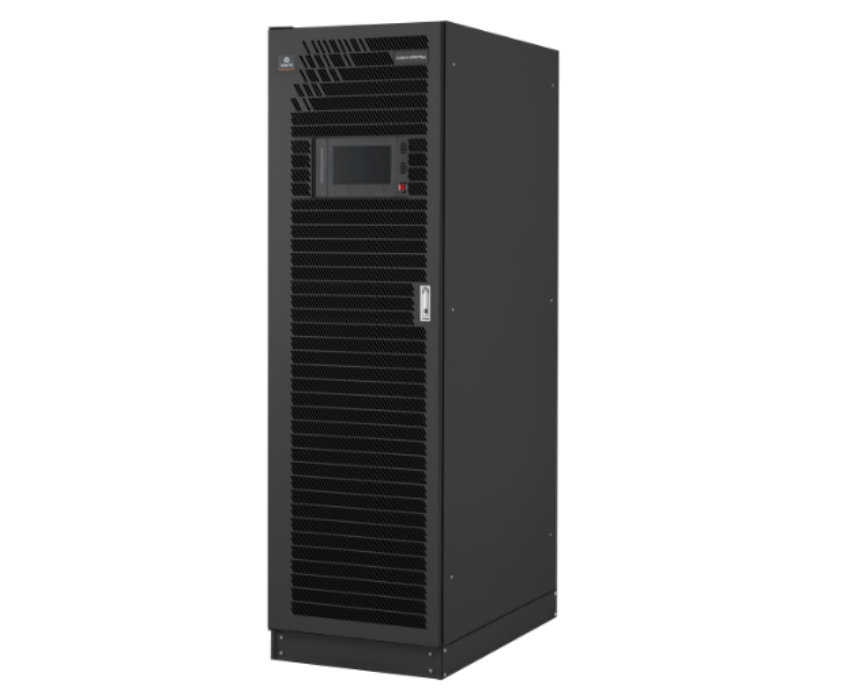

Vertiv Liebert APM Plus UPS 50 - 500 kVA
Vertiv™ Liebert®
APM Plus UPS 50kVA - 500kVA
Next-Gen Versatile Modular UPS - Fit for Row & Room
Vertiv Liebert APM Plus adalah UPS modular high-density transformer-free dengan efisiensi double conversion hingga 97% dan ECO mode hingga 99%. Dengan desain ultra-compact, scalable hingga 2MW, dan modul hot-swappable 50kW, Liebert APM Plus ideal untuk enterprise data center, cloud/colo, telecom IDC, dan aplikasi mission-critical.
Key Features
Fitur unggulan Vertiv Liebert APM Plus untuk perlindungan daya enterprise
Remarkable Efficiency
Efisiensi double conversion hingga 97% dengan flat efficiency curve, ECO mode hingga 99%
Ultra-Compact Design
Footprint terkecil 0.6m² untuk 500kVA, hemat hingga 20-50% floor space
FlexPower Technology
Modular scalability dengan increment 50kW, setiap modul dengan independent DSP control
Scalable to 2MW
Intelligent paralleling hingga 4 unit dengan integrated parallel dan LBS communication
Hot-Swappable Modules
Power modules dan bypass module dapat diganti tanpa downtime, mengurangi MTTR
9-Inch Touch Screen
LCD touch screen multilingual dengan advanced diagnostics dan real-time monitoring
High Temp Tolerance
Beroperasi hingga 40°C tanpa derating, toleransi hingga 50°C dengan auto-derating
Robust Protection
Conformal coating PCB, backfeed protection, dan short circuit handling hingga 65kA
Technical Specifications
Spesifikasi teknis lengkap Vertiv Liebert APM Plus series
| Parameter | Spesifikasi |
|---|---|
| Kapasitas Frame | 50kVA - 250kVA (increment 50kW) |
| Topology | Online Double Conversion (VFI-SS-111) |
| Input Voltage | 380/400/415VAC 3-Phase + N (sharing neutral with bypass) |
| Input Voltage Range | 228-478VAC (tanpa discharge battery) |
| Input Frequency | 40-70Hz (Nominal 50/60Hz) |
| Input Power Factor | 0.99 |
| Input THDi | <3% at full load |
| Bypass Voltage Tolerance | Upper: +10/+15/+20% | Lower: -10/-20/-30/-40% |
| Output Voltage | 380/400/415VAC 3-Phase + N |
| Output Power Factor | Unity (1.0) - Symmetrical 0.5 leading to 0.5 lagging |
| Output THDv | ≤2% at 100% linear load |
| Overload Capacity | <105%: Continuous | 125%: 10min | 150%: 1min | >150%: 200ms |
| Efficiency (Double Conv.) | Up to 97% |
| Efficiency (ECO Mode) | >99% |
| Battery Blocks/String | 28-44 blocks |
| Charger Max Current | 75A |
| Noise Level | <68 dBA @ 1m |
| Dimensions (WxDxH) | 600 x 850 x 2000 mm |
| Weight | 447 kg |
| Operating Temp | Up to 40°C (derating above 40°C, max 50°C) |
| Protection Level | IP20 (IP21, IP31 optional) |
| Parallel Capacity | Up to 4 units (max 2MW with intelligent paralleling) |
| Parameter | Spesifikasi |
|---|---|
| Kapasitas Frame | 50kVA - 500kVA (increment 50kW) |
| Topology | Online Double Conversion (VFI-SS-111) |
| Input Voltage | 380/400/415VAC 3-Phase + N (sharing neutral with bypass) |
| Input Voltage Range | 228-478VAC (tanpa discharge battery) |
| Input Frequency | 40-70Hz (Nominal 50/60Hz) |
| Input Power Factor | 0.99 |
| Input THDi | <3% at full load |
| Bypass Voltage Tolerance | Upper: +10/+15/+20% | Lower: -10/-20/-30/-40% |
| Output Voltage | 380/400/415VAC 3-Phase + N |
| Output Power Factor | Unity (1.0) - Symmetrical 0.5 leading to 0.5 lagging |
| Output THDv | ≤2% at 100% linear load |
| Overload Capacity | <105%: Continuous | 125%: 10min | 150%: 1min | >150%: 200ms |
| Efficiency (Double Conv.) | Up to 97% |
| Efficiency (ECO Mode) | >99% |
| Battery Blocks/String | 28-44 blocks |
| Charger Max Current | 150A |
| Noise Level | <70 dBA @ 1m |
| Dimensions (WxDxH) | 600 x 1000 x 2000 mm (single/no switch) 1200 x 1000 x 2000 mm (four switches) |
| Weight | 600 kg (no switch) | 608 kg (single switch) | 824 kg (four switches) |
| Operating Temp | Up to 40°C (derating above 40°C, max 50°C) |
| Protection Level | IP20 |
| Parallel Capacity | Up to 4 units (max 2MW with intelligent paralleling) |
Applications
Aplikasi ideal untuk Vertiv Liebert APM Plus UPS
Enterprise Data Center
Perlindungan daya untuk data center enterprise dengan desain row dan room yang fleksibel
Cloud & Colocation
UPS modular ideal untuk cloud provider dan colocation dengan scalability tinggi
Telecom IDC
Power backup andal untuk Internet Data Center dan infrastruktur telekomunikasi
Process Control Center
Daya stabil untuk workstation dan sistem kontrol proses industri
Why Choose NPS?
Keunggulan membeli Vertiv Liebert APM Plus dari NPS
Authorized Partner
Sebagai partner resmi Vertiv di Indonesia, kami menjamin keaslian produk dengan dukungan garansi penuh dari pabrik.
Expert Installation
Tim engineer bersertifikat untuk instalasi, commissioning, dan startup sesuai standar Vertiv.
Maintenance Support
Layanan preventive dan corrective maintenance untuk memastikan UPS beroperasi optimal.
24/7 Support
Dukungan teknis responsif dengan layanan emergency response untuk critical downtime.
Battery Service
Layanan penggantian dan disposal battery dengan prosedur aman sesuai standar lingkungan.
Flexible Contract
Pilihan kontrak service yang fleksibel mulai dari basic hingga comprehensive coverage.
Tertarik dengan Vertiv Liebert APM Plus?
Hubungi tim kami untuk konsultasi kebutuhan UPS modular dan dapatkan penawaran terbaik.
