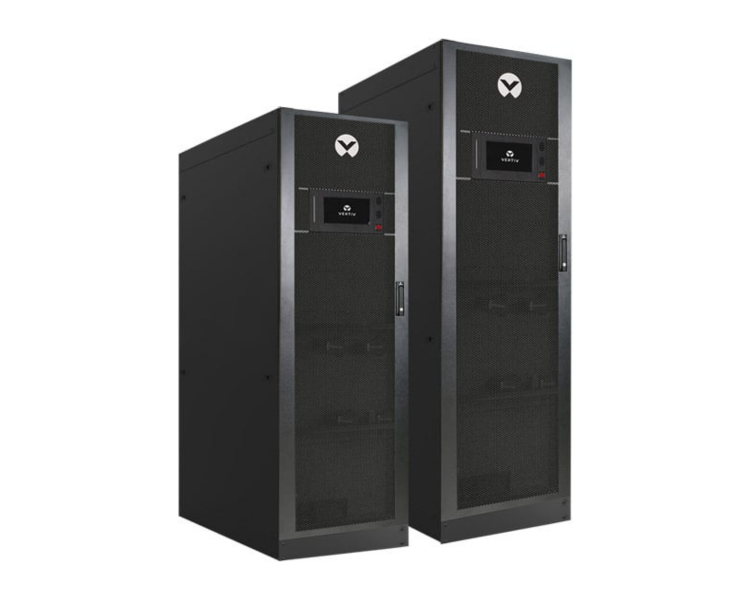

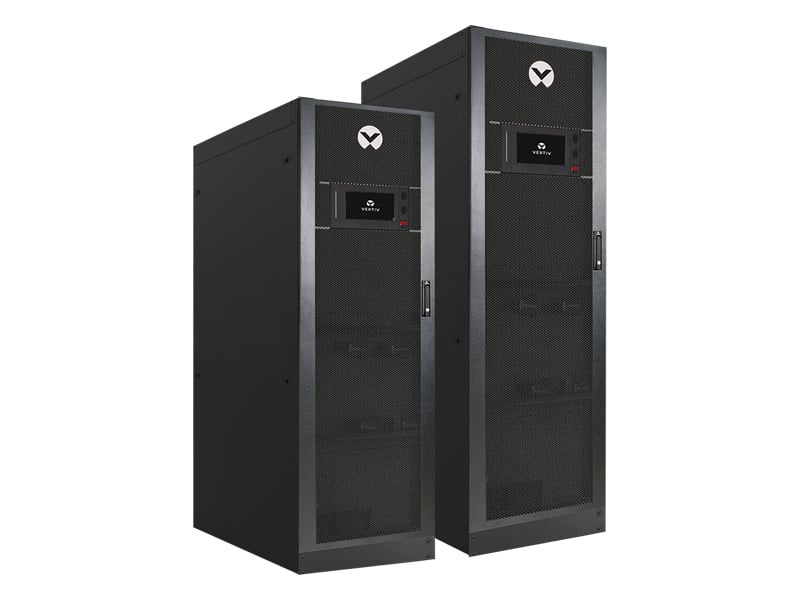

Vertiv Liebert EXM 2 UPS 100

Vertiv Liebert EXM 2 UPS 100 - 250kVA

The Vertiv Liebert EXM 2 UPS is a modular Uninterruptible Power Supply (UPS) system designed to offer reliable and efficient power protection for critical applications. With a power capacity ranging from 100 kVA to 250 kVA, it is suitable for a wide variety of installations, including small to medium-sized data centers and larger industrial applications.

One of the standout features of the Vertiv Liebert EXM 2 UPS is its high efficiency. It achieves up to 97% efficiency in double conversion mode, which significantly reduces energy consumption and operational costs. Additionally, it offers an ECO mode that can further increase efficiency to up to 99% during periods of lower power demand.

The modular and scalable design of the Vertiv Liebert EXM 2 UPS allows for easy capacity expansion and redundancy. Modules can be added or replaced without causing any downtime, making it simple to adapt to growing power needs. This flexibility is enhanced by its ability to support both vertical and horizontal scaling.

Technical Specifications

Model	Power Rating	Input Voltage	Output Voltage	Efficiency
Liebert EXM2 100 - 250kVA	100kVA, 120kVA, 160kVA, 200kVA, 250kVA	380 / 400 / 415 V 3Ph+N	380 / 400 / 415 V 3Ph+N	up to 97% double conversion mode

Key Features

High Efficiency

Achieves up to 97% efficiency in double conversion mode, reducing energy consumption and operational costs. ECO mode operation can further increase efficiency to up to 99%.

Scalable and Modular Design

Modular architecture allows for easy scalability and redundancy. Modules can be added or replaced without causing any downtime, making it simple to adapt to growing power needs. Supports both vertical and horizontal scaling.

Advanced Battery Management

Features intelligent battery management systems that extend battery life and ensure reliable performance. Supports a wide range of battery configurations, including VRLA, lithium-ion, and flywheel energy storage.

Wide Input Voltage Range

Capable of handling a broad range of input voltages, ensuring stable operation even in areas with unstable power supply

User-friendly Interface

Equipped with a large, graphical LCD display and intuitive touch screen interface for easy monitoring and control. Provides real-time information on UPS status, power conditions, and operational parameters.

Advanced Protection

Offers comprehensive protection against power disturbances such as surges, spikes, and outages. Includes features like input power factor correction, output voltage regulation, and short-circuit protection

Eco-friendly Design

Designed to minimize environmental impact, with compliance to global environmental standards. High-efficiency operation reduces carbon footprint and energy costs.

Easy Maintenance

Hot-swappable modules and user-friendly design facilitate easy maintenance and reduce service time. Modular components can be serviced or replaced without shutting down the system, ensuring continuous protection.

Applications

Data Center

Ensures continuous power supply and protection for critical IT infrastructure, making it suitable for medium to large-sized data centers.

Healthcare

Protects sensitive medical equipment from power disturbances, ensuring continuous operation of critical healthcare services.

Industrial Automation

Provides stable power for industrial control systems and machinery, minimizing downtime and production losses due to power interruptions.

Telecommunications

Provides reliable power for telecom networks and equipment, ensuring uninterrupted communication services.

Commercial Buildings

Provides power protection for office buildings and commercial establishments, ensuring smooth business operations and protecting valuable equipment.
