Vertiv · Micro Data Center

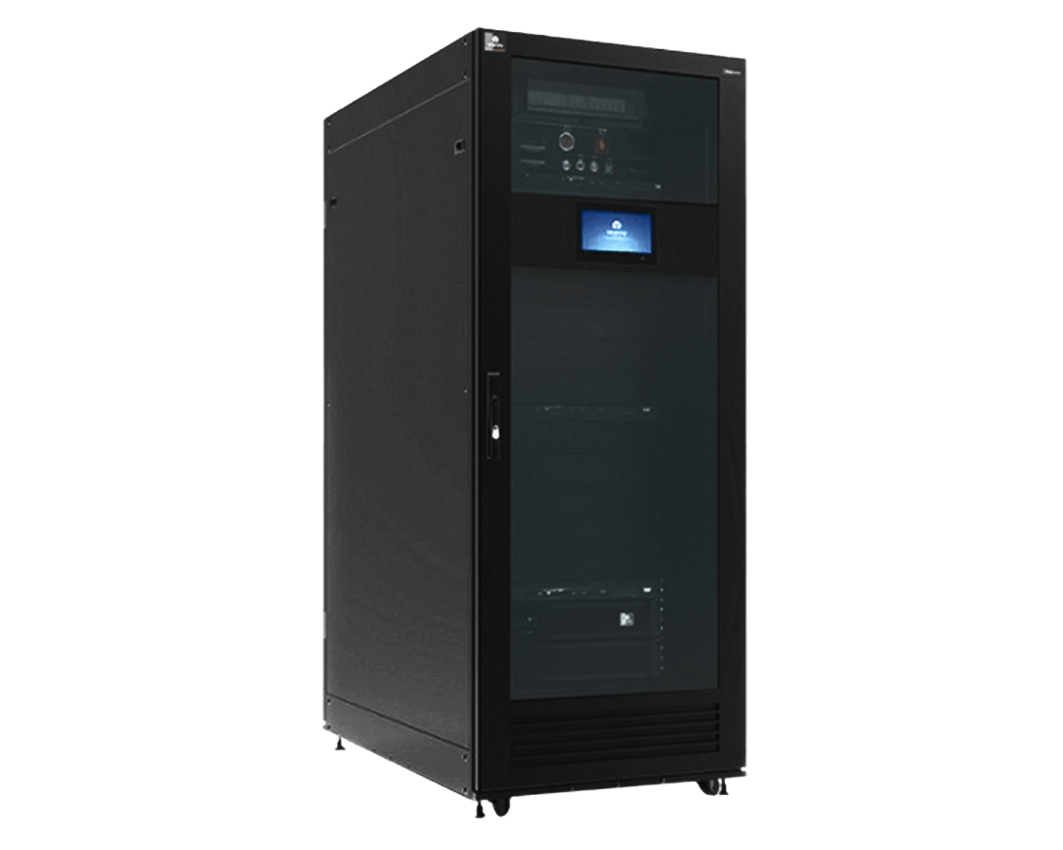

SmartCabinet 2 Split 3kW
Vertiv SmartCabinet 2 Split Micro Data Center 3kW Indonesia
Integrated Single-Rack Micro Data Center for Edge and Small IT Rooms
Vertiv SmartCabinet 2 Split adalah solusi micro data center single-rack yang mengintegrasikan UPS, split cooling, power distribution, monitoring, smart lock, dan environmental sensor dalam satu kabinet. Solusi ini cocok untuk edge computing, branch office, telecom site, retail, dan small IT room yang membutuhkan deployment cepat dengan footprint minimal.
3kW IT Capacity
29U Usable Space
0.9-3.5kW Split Cooling
IP5X Protection
9 inch LCD Touchscreen
3kW
IT Capacity
29U
Usable Rack Space
5kVA
Integrated UPS
1 Tahun
Garansi Standar
Micro Data Center Portfolio
Single-rack solution for edge, branch, and small IT room deployment
SmartCabinet 2 Split berada pada kategori single-rack micro data center. Fokusnya adalah menyediakan ruang IT terintegrasi dalam satu kabinet untuk lokasi yang tidak memiliki dedicated data center room, namun tetap membutuhkan power protection, cooling, monitoring, dan security.
- 01Integrated power and coolingUPS, battery, split cooling, PMU, and rack PDU are designed as one cabinet system.
- 02Designed for distributed ITIdeal for branch office, telecom edge, retail, healthcare, and compact server room deployment.
- 03Centralized visibilityLocal LCD, IP-based web access, mobile monitoring, environmental sensors, and alarm visibility help reduce site visits.
Integrated Infrastructure
Key Features
Komponen utama micro data center yang sudah terintegrasi di dalam Vertiv SmartCabinet 2 Split.
Split Cooling System
Sistem split cooling 0.9-3.5kW dengan modulation capability dan emergency fan untuk menjaga temperatur cabinet.
Power Management Unit
PMU built-in untuk manajemen daya, integrasi UPS, cooling unit, rack PDU, dan surge protection device.
Smart Lock Access
Akses cabinet menggunakan ID card, web interface, atau kunci fisik untuk meningkatkan keamanan ruang IT.
9 inch LCD Touchscreen
Display lokal untuk monitoring power, cooling, environment, alarm, dan security status secara real-time.
Environmental Monitoring
Monitoring suhu, kelembaban, dan water leak detector untuk membantu mencegah gangguan operasional.
Model Options
Available Cabinet Widths
Dua pilihan width cabinet untuk menyesuaikan kebutuhan cable management, rack density, dan ruang instalasi.
| Model | Dimensions H×W×D | IT Capacity | UPS | Cooling | Usable Space | Protection |
|---|---|---|---|---|---|---|
| SmartCabinet 2 Split 600mm | 2000 × 600 × 1200 mm | 3 kW | 5 kVA Liebert ITA2 | Split, 0.9-3.5 kW | 29U | IP5X |
| SmartCabinet 2 Split 800mm | 2000 × 800 × 1200 mm | 3 kW | 5 kVA Liebert ITA2 | Split, 0.9-3.5 kW | 29U | IP5X |
Technical Details
System Specifications
Ringkasan teknis komponen utama SmartCabinet 2 Split untuk kebutuhan engineering review.
Power, Cooling, and Cabinet Specification
| Category | Parameter | Specification |
|---|---|---|
| Power System | UPS Model | Liebert ITA2 |
| Power System | UPS Capacity | 5 kVA, power factor 1.0 |
| Power System | IT Load Capacity | 3000 W / 3 kW |
| Power Distribution | Rack PDU | 2 pcs switched PDU, 32A input |
| Power Distribution | Outlet Configuration | 18 × C13 and 6 × C19 |
| Cooling | Cooling Type | Split cooling system |
| Cooling | Cooling Capacity | 900 W - 3500 W |
| Cooling | Refrigerant | R410A |
| Cabinet | Usable IT Space | 29U |
| Cabinet | Protection | IP5X with tempered glass door |
| Monitoring | Local Display | 9 inch LCD touchscreen |
| Security | Access Control | Smart lock with ID card, web interface, or physical key |
All-in-One Cabinet
Integrated Components
Satu cabinet berisi elemen power, cooling, monitoring, security, dan environmental protection.
UPS & Battery
Liebert ITA2 5kVA online double conversion dengan internal battery module.
Split Cooling Unit
Cooling modulation 0.9-3.5kW dengan emergency fan support.
Power Management
PMU, surge protection, and switched PDU for cabinet power distribution.
LCD Touchscreen
9 inch local display for power, cooling, alarm, and security monitoring.
Environmental Sensor
Temperature and humidity monitoring for cabinet operating condition.
Water Leak Detector
Leak detection with alarm notification for risk mitigation.
Smart Lock
Access control via ID card, web interface, and physical key.
LED Lighting
Internal lighting to support maintenance and site inspection.
Deployment Use Cases
Applications
Solusi ideal untuk lokasi IT yang butuh infrastruktur lengkap, compact, dan mudah dimonitor.
Edge Computing
Infrastruktur IT dekat sumber data untuk IoT, video analytics, 5G edge, dan real-time processing.
Telecom Sites
Micro data center untuk telco edge, base station support, dan remote network node.
Branch Offices
Server room compact untuk kantor cabang dengan ruang terbatas dan kebutuhan monitoring terpusat.
Retail & Commercial
Integrated cabinet untuk POS system, local server, networking, security, dan small IT infrastructure.
Why NPS
Why Choose NPS?
Partner engineering untuk konsultasi, supply, instalasi, commissioning, dan lifecycle service micro data center Anda.
01
Authorized Partner
Partner resmi Vertiv dengan akses produk genuine, dukungan teknis principal, dan after-sales resmi.
02
Micro DC Integration
NPS memahami integrasi UPS, cooling, rack, PDU, monitoring, cabling, dan environmental protection dalam satu sistem.
03
Deployment & Commissioning
Dukungan instalasi, testing, commissioning, setting alarm, dokumentasi, dan handover ke tim operasional.
04
Local Service Support
Dukungan service lokal untuk preventive maintenance, troubleshooting, spare-part coordination, dan emergency response.
05
Site-Based Recommendation
Rekomendasi disesuaikan dengan lokasi, load profile, network requirement, room condition, dan target uptime.
06
Lifecycle Planning
Membantu perencanaan maintenance, battery lifecycle, cooling health, alarm review, dan capacity growth.
Need a Single-Rack Micro Data Center?
Konsultasikan kebutuhan edge computing, branch office, atau small IT room Anda dengan tim NPS. Kami dapat membantu memilih kapasitas, layout cabinet, power, cooling, monitoring, dan service strategy yang sesuai.
