Huawei Digital Power
UPS5000 Series 30kVA - 1.6MW
Tower & Modular UPS for Data Center Power Protection
Huawei UPS5000 Product Type Matrix for Data Center UPS Selection
Huawei UPS5000 Series adalah portfolio UPS Huawei Digital Power untuk data center dan critical facility, mencakup UPS5000-A, UPS5000-E, dan UPS5000-H dalam konfigurasi tower/cabinet hingga modular high-density. Seri ini dirancang untuk kebutuhan power protection yang scalable, efisien, dan mudah dikembangkan sesuai kapasitas beban serta target redundancy.
9 Types
Product Matrix
99.1%
Max Efficiency
1 Tahun
Garansi Standar
Comparison-first layout for Huawei UPS5000
Karena banyak model Huawei UPS5000 memakai visual cabinet yang mirip, pendekatan tabel product type lebih efektif daripada photo card berulang. Buyer dapat membandingkan series berdasarkan kapasitas, form factor, redundancy, efisiensi, density, dan skenario implementasi dalam satu layout yang lebih ringkas.

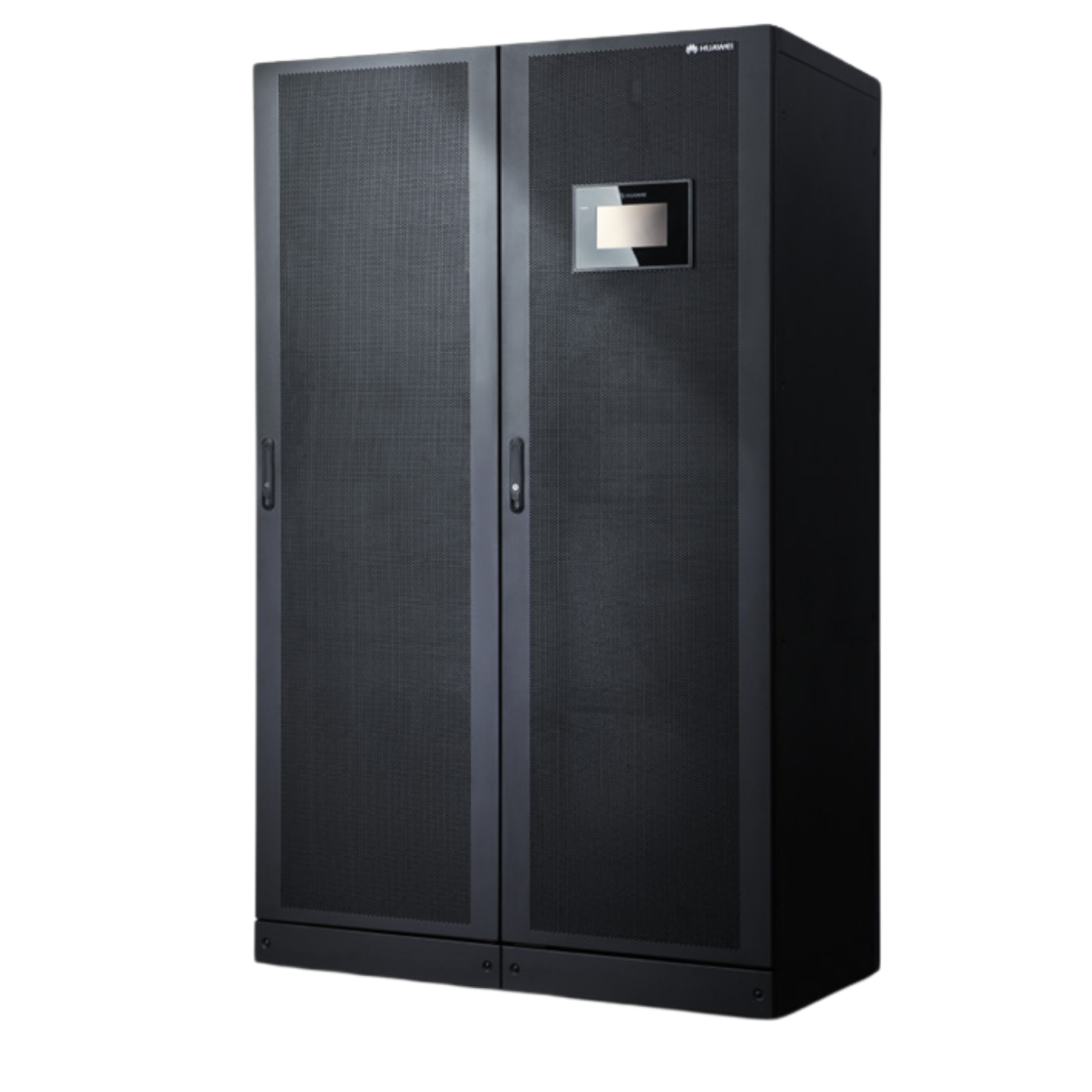

UPS5000-A Series
Tower / cabinet UPS untuk small-medium data center dan kebutuhan standalone dengan range 30kVA hingga 600kVA.
UPS5000-E Series
Modular UPS dengan hot-swap module, N+X redundancy, dan opsi SmartLi untuk medium-large data center.
UPS5000-H Series
High-density modular UPS untuk large, mega, dan hyperscale data center dengan kapasitas hingga 1.6MW.
Huawei UPS5000 Series Comparison
Gunakan tab berikut untuk membandingkan product type Huawei UPS5000 berdasarkan series, kapasitas, konfigurasi, teknologi utama, dan skenario penggunaan.
| Product Type | Series | Capacity Range | Configuration | Key Technologies | Recommended Use | Action |
|---|---|---|---|---|---|---|
| UPS5000-A 30-60kVA | Series A | 30 / 40 / 60kVA | Tower / Rack | Unity PF, up to 96% efficiency | Small-medium data center, server room, edge site | Request |
| UPS5000-A 400-600kVA | Series A | 400 / 500 / 600kVA | Large Tower / Cabinet | High density, 300kVA/cabinet, up to 96% efficiency | Medium-large facility requiring standalone high capacity UPS | Request |
| UPS5000-E 30-120kVA | Series E | 30-120kVA | Modular - FM | Hot-swap, 5-minute service, up to 96% efficiency | Growing IT room or medium data center needing modular expansion | Request |
| UPS5000-E 20-160kVA | Series E | 20-160kVA @ 208V | Modular - 208V | N+X redundancy, iPower, 208V output | 208V environment, IT load integration, regional standard adaptation | Request |
| UPS5000-E 50-800kVA | Series E | 50-800kVA | Large Modular | Up to 97.1% efficiency, wide input range, Li-ion ready | Medium-large data center, phased capacity growth, N+X design | Request |
| UPS5000-E 400-600kVA | Series E | 400 / 500 / 600kVA | Modular - SMS/FMS | SMS/FMS configuration, parallel ready, SmartLi compatible | Data center requiring modular architecture with flexible system configuration | Request |
| UPS5000-H 50-200kVA | Series H | 50-200kVA @ 200V | High-Density - NTJ | Japan 200V, up to 97.5% efficiency, 100kVA/3U | 200V environment with high-density module requirement | Request |
| UPS5000-H 300-1600kVA | Series H | 300kVA-1600kVA | High-Density - 3P4W | Up to 99.1% S-ECO, 1MW/rack, 3 phase 4 wire | Large and mega data center needing maximum density and efficiency | Request |
| UPS5000-H 800-1600kVA | Series H | 800kVA-1600kVA | High-Density - 3P3W | iPower AI, peak shaving, high-density modular system | Hyperscale or large critical facility with advanced power management | Request |
| Product Type | Capacity Range | Configuration | Key Technologies | Recommended Use | Action |
|---|---|---|---|---|---|
| UPS5000-A 30-60kVA | 30 / 40 / 60kVA | Tower / Rack | Unity PF, up to 96% efficiency | Small-medium data center, server room, edge site | Request |
| UPS5000-A 400-600kVA | 400 / 500 / 600kVA | Large Tower / Cabinet | High density, 300kVA/cabinet, up to 96% efficiency | Standalone high capacity UPS for medium-large facility | Request |
| Product Type | Capacity Range | Configuration | Key Technologies | Recommended Use | Action |
|---|---|---|---|---|---|
| UPS5000-E 30-120kVA | 30-120kVA | Modular - FM | Hot-swap, 5-minute service, up to 96% efficiency | Growing IT room or medium data center needing modular expansion | Request |
| UPS5000-E 20-160kVA | 20-160kVA @ 208V | Modular - 208V | N+X redundancy, iPower, 208V output | 208V environment and IT load integration | Request |
| UPS5000-E 50-800kVA | 50-800kVA | Large Modular | Up to 97.1% efficiency, wide input range, Li-ion ready | Medium-large data center, N+X redundancy, phased growth | Request |
| UPS5000-E 400-600kVA | 400 / 500 / 600kVA | Modular - SMS/FMS | SMS/FMS configuration, parallel ready, SmartLi compatible | Data center requiring flexible modular system architecture | Request |
| Product Type | Capacity Range | Configuration | Key Technologies | Recommended Use | Action |
|---|---|---|---|---|---|
| UPS5000-H 50-200kVA | 50-200kVA @ 200V | High-Density - NTJ | Japan 200V, up to 97.5% efficiency, 100kVA/3U | 200V environment with high-density module requirement | Request |
| UPS5000-H 300-1600kVA | 300kVA-1600kVA | High-Density - 3P4W | Up to 99.1% S-ECO, 1MW/rack, 3 phase 4 wire | Large and mega data center needing maximum density and efficiency | Request |
| UPS5000-H 800-1600kVA | 800kVA-1600kVA | High-Density - 3P3W | iPower AI, peak shaving, high-density modular system | Hyperscale or large critical facility with advanced power management | Request |
Technology Highlights of Huawei UPS5000
Teknologi utama yang perlu diperhatikan saat memilih Huawei UPS5000 untuk data center dan critical power system.
iPower AI Monitoring
Full-link monitoring dan predictive maintenance untuk membantu mendeteksi risiko sebelum menjadi downtime.
S-ECO Mode
Super ECO mode dengan efisiensi hingga 99.1% dan transfer time 0ms untuk menjaga kualitas daya.
Hot-Swap Modules
Power, bypass, dan control module dapat diganti dengan waktu service singkat tanpa mengganggu operasi.
SmartLi Compatible
Kompatibel dengan Huawei SmartLi lithium battery system untuk footprint lebih kecil dan lifecycle battery lebih terukur.
Ideal Implementation Sectors
Huawei UPS5000 dapat diposisikan untuk berbagai skala data center, mulai dari edge facility hingga hyperscale infrastructure.
UPS modular untuk data center enterprise dan colocation dengan kebutuhan capacity growth, redundancy, dan monitoring terpusat.
UPS5000-A dan entry modular range cocok untuk server room, regional edge site, dan IT facility yang membutuhkan footprint efisien.
UPS5000-H untuk high-density, large capacity, dan efisiensi tinggi pada mega data center atau hyperscale deployment.
Mendukung central office, network operation center, dan critical network rooms yang membutuhkan uptime dan serviceability tinggi.
Why Choose NPS?
NPS membantu memilih, merancang, memasang, dan merawat Huawei UPS5000 berdasarkan kebutuhan load, redundancy, battery runtime, dan site condition.
Authorized Partner
Menyediakan solusi Huawei UPS dengan dukungan resmi, produk original, dan koordinasi teknis untuk kebutuhan proyek critical power.
Product Type Selection
Tim engineering membantu membandingkan UPS5000-A, E, dan H berdasarkan kapasitas, load profile, redundancy, efficiency, dan expansion roadmap.
Installation & Commissioning
Dukungan instalasi, terminasi, startup, testing, commissioning, dan dokumentasi handover sesuai standar site critical facility.
Battery & Runtime Planning
Perencanaan VRLA atau lithium battery, runtime, cabinet footprint, protection, serta lifecycle replacement sesuai kebutuhan operasi.
Maintenance Support
Layanan preventive maintenance, corrective support, spare coordination, dan troubleshooting untuk menjaga UPS tetap siap operasi.
1 Year Standard Warranty
Garansi standar 1 tahun dengan opsi extended warranty dan service contract sesuai kebutuhan SLA pelanggan.
Need Help Selecting Huawei UPS5000?
Hubungi tim NPS untuk menentukan product type Huawei UPS5000 yang paling sesuai dengan kapasitas beban, redundancy target, battery runtime, footprint, dan rencana ekspansi data center Anda.
